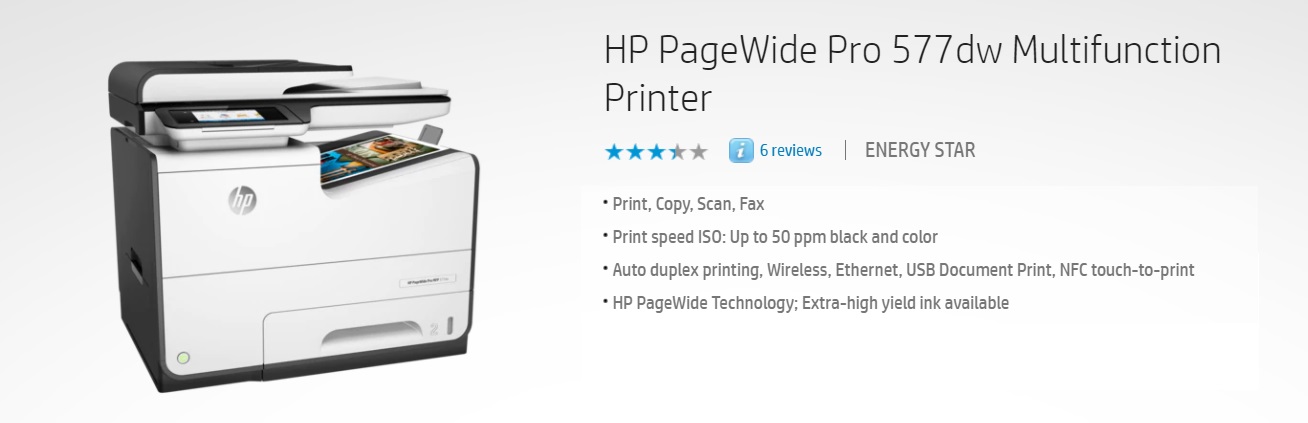

HP PageWide Pro 577dw Multifunction Printer

Print, copy, scan, fax

Up to 99 copies

Yes, color

4 sec per page

Up to 100 pages (black and white); Up to 8 pages (color)

300 x 300 dpi

Up to 99 numbers

20

Input voltage: 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz)

100 watts (Maximum), 70 watts average (Printing), 10 watts (Ready), 4.8 watts (Sleep), 0.2 watts (Manual-Off)

20.9 x 16.0 x 18.4 in

31.6 x 27.3 x 18.4 in (with MP tray down with extension out, main tray extended, output tray extension in legal position)

48.83 lb

58.18 lb

HP PageWide Pro 577dw Multifunction Printer; HP 972A Setup Black PageWide Cartridge (~3500 pages); HP 972A Setup Cyan PageWide Cartridge; HP 972A Setup Magenta PageWide Cartridge; HP 972A Setup Yellow PageWide Cartridge (CMY composite ~2000 pages); power cord; phone cord; installation guide; CD-ROMs (for software, Windows and Mac printer drivers, and User's Guide).

Please purchase USB cable separately; 1 Phone cord

One-year, on-site warranty, service and support; one-year technical phone support, chat, and e-mail

Windows Installer and discrete PCL 6 driver; Mac Installer and PS driver; HP Participation Study; IRIS OCR

As fast as 6 sec

As fast as 6.5 sec

Up to 1200 x 1200 optimized dpi from 600 x 600 input dpi (on Unspecified, Plain, HP Premium Presentation Matte, and HP Brochure Matte)

Up to 2400 x 1200 optimized dpi from 600 x 600 input dpi (on HP Advanced Photo Papers)

Up to 80,000 pages

Up to 50 ppm

1000 to 6000 ^[8]

HP PageWide Technology with pigmented inks

4.3" CGD (color graphics), IR touchscreen

4 (1 each black, cyan, magenta, yellow)

HP 972A Black Original PageWide Cartridge (~3500 pages); HP 972A Cyan Original PageWide Cartridge; HP 972A Magenta Original PageWide Cartridge; HP 972A Yellow Original PageWide Cartridge (CMY composite ~3000 pages); HP 972X High Yield Black Original PageWide Cartridge (~10,000 pages); HP 972X High Yield Cyan Original PageWide Cartridge; HP 972X High Yield Magenta Original PageWide Cartridge; HP 972X High Yield Yellow Original PageWide Cartridge (CMY composite ~7000 pages); HP 976Y Extra High Yield Black Original PageWide Cartridge (~17,000 pages); HP 976Y Extra High Yield Cyan Original PageWide Cartridge; HP 976Y Extra High Yield Magenta Original PageWide Cartridge; HP 976Y Extra High Yield Yellow Original PageWide Cartridge (CMY composite ~13,000 pages)

Dynamic security enabled printer. Only intended to be used with cartridges using an HP original chip. Cartridges using a non-HP chip may not work, and those that work today may not work in the future.

http://www.hp.com/go/learnaboutsupplies

Pigment-based (black and color)

HP PCLXL (PCL6), PCL5, native PDF, HP Postscript Level 3 emulation

Yes

Up to 50 ppm

2

Up to 3

HP ePrint; Apple AirPrint™; Mopria™-certified; Wireless Direct Printing; Google Cloud Print 2.0; Mobile Apps

2 Hi-Speed USB 2.0 Host; 1 Hi-Speed USB 2.0 Device; 1 Ethernet 10/100 Base-TX network; 2 RJ-11 modem port/phone line; 802.11 b/g/n Station; 802.11 b/g Access Point

Support the following external Jetdirect servers; Print only: HP Jetdirect en1700 External Print Server (J7988G), HP Jetdirect en3700 Fast-Ethernet External Print Server for Network Capable Hi-Speed USB 2.0 & 3.0 Peripherals (J7942G), HP Jetdirect ew2400 802.11b/g wireless and Fast Ethernet external print server (USB 2.0, 10/100Base-TX, 802.11b/g) (J7951G), HP Jetdirect ew2500 802.11b/g Wireless Print Server (J8021A); Other supported accessories: Apple AirPort Express, Apple AirPort Extreme, Apple Airport TimeCapsule; WiFi Direct

Standard (built-in Ethernet and WiFi 802.11b/g/n)

SSL/TLS (HTTPS), LDAP authentication; optional HP and 3rd party authentication solutions (e.g. badge readers) IPP over TLS; WPA2-Enterprise wired; 802.1x wireless authentication (EAP-TLS, LEAP, and PEAP); Pre-Shared Key Authentication for Wireless (PSK); firewall, certificates configuration; Control panel lock; Password protect EWS; Unused protocol and service disablement; Syslog; Signed firmware; Administrator settings; native authentication and authorization access control, native color access control ; configurable authentication time out; UPD PIN printing; Mopy mode via UPD PIN printing; compatible with optional HP JetAdvantage Security Manager

Up to 70 ppm

Apple® OS X v10.11 El Capitan, OS X v10.10 Yosemite, OS X v10.9 Mavericks; 1 GB HD; Internet required; USB

Windows® 10, 8.1, 8, 7: 32-bit or 64-bit, 2 GB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer. Windows Vista®: (32-bit only), 2 GB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer 8. Windows® XP SP3 or higher (32-bit only): any Intel® Pentium® II, Celeron® or 233 MHz compatible processor, 850 MB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer 8

Windows 10, Windows 8, Windows 7, Mac OS X v10.11 El Capitan, OS X v10.10 Yosemite, OS X v10.9 Mavericks, Linux (hplip.net)

None

768 MB

768 MB

HP Web Jetadmin; Embedded Web Server; HP UPD Printer Administrator Resource Kit; HP Utility (Mac), HP JetAdvantage Security Manager optional

Up to 70 ppm

Supported Network Protocols configurations (IPv4, IPv6); BOOTP; SMTP client; LLMNR; Bonjour; LP/ APIPA (Auto IP); NetBIOS/WINS; LPD; Custom Raw Port/Port9100; DNS Resolver; mDNS; SNMPv1/v2; SNMPv3; Web Services Discovery; Web Services Print; DHCP options: 81/RFC4702/RFC4704, 12-Hostname; 44; Syslog; Firewall; SSL/TLS (HTTPs); Password-protected network Embedded Web server; Enable/disable network ports & device features; 802.1x wired authentication; 802.1x wireless authentication (EAP-TLS and PEAP)

500-sheet input tray, 50-sheet multi-purpose tray

300-sheet face-down output bin

Automatic (standard)

Up to 37 envelopes

No

Sheetfed, ADF

Tray 1: Oficio; A4; A5; A6; B5 (JIS); B6 (JIS); 16K; 10 x 15 cm; L; Hagaki; envelopes (B5; C5; C6; DL; Chou #3; Chou #4); Tray 2: A4; A5; B5 (JIS); 16K; envelopes (DL; B5; C5; Chou #3); Tray 3: A4; A5; B5 (JIS); 16K

Tray 1: 3 x 5 in to 8.5 x 14 in; Tray 2: 4.0 x 8.3 in to 8.5 x 11.7 in; Optional Tray 3: 4.0 x 8.3 in to 8.5 x 14 in

Plain paper (light, intermediate, mid-weight, heavy, extra heavy, prepunched, recycled, bond, other inkjet plain paper), photo (glossy, gloss, soft gloss, satin, matte, other inkjet photo), envelopes, labels, cards, specialty papers (glossy brochure, matte brochure, tri-fold brochure, Hagaki, greeting cards, other inkjet specialty paper)

16 to 32 lb (plain paper); 33 to 80 lb (photo); 20 to 24 lb (envelope); 32 to 48 lb (brochure); 90 to 110 lb (card)

Tray 1: 16 to 32 lb (plain paper); 33 to 80 lb (photo); 20 to 24 lb (envelope); 32 to 48 lb (brochure); 90 to 110 lb (card); Tray 2: 16 to 32 lb (plain paper); 33 to 66 lb (photo); 20 to 24 lb (envelope); 32 to 48 lb (brochure); 90 to 110 lb (card); Tray 3, 4: 16 to 32 lb (plain paper); 33 to 66 lb (photo); 32 to 48 lb (brochure); 90 to 110 lb (card)

Tray 1: 60 to 120 g/m² (plain paper); 125 to 300 g/m² (photo); 75 to 90 g/m² (envelope); 120 to 180 g/m² (brochure); 163 to 200 g/m² (card); Tray 2: 60 to 120 g/m² (plain paper); 125 to 250 g/m² (photo); 75 to 90 g/m² (envelope); 120 to 180 g/m² (brochure); 163 to 200 g/m² (card); Tray 3, 4: 60 to 120 g/m² (plain paper); 125 to 250 g/m² (photo); 120 to 180 g/m² (brochure); 163 to 200 g/m² (card)

Flatbed, ADF

Up to 50 ppm

Scan File Type supported by Software: Bitmap (.bmp), JPEG (.jpg), PDF (.pdf), PNG (.png), Rich Text (.rtf), Searchable PDF (.pdf), Text (.txt), TIFF (.tif)

Up to 1200 x 1200 dpi

Up to 1200 dpi

8.5 x 14 in

8.5 x 14 in

Yes

Up to 50 ppm

Standard, 50 sheets

Scan-to E-mail with LDAP email address lookup; Scan-to Network Folder; Scan-to USB; Scan-to Sharepoint; Scan-to Computer with SW; Fax Archive-to Network Folder; Fax Archive to E-mail; Fax-to Computer; Enable/Disable Fax; Enable/Disable color Fax, Color Access Control; Native Authorization & Authentication

Up to 70 cpm

Up to 70 cpm

Up to 600 dpi

Up to 600 dpi

25 to 400%
