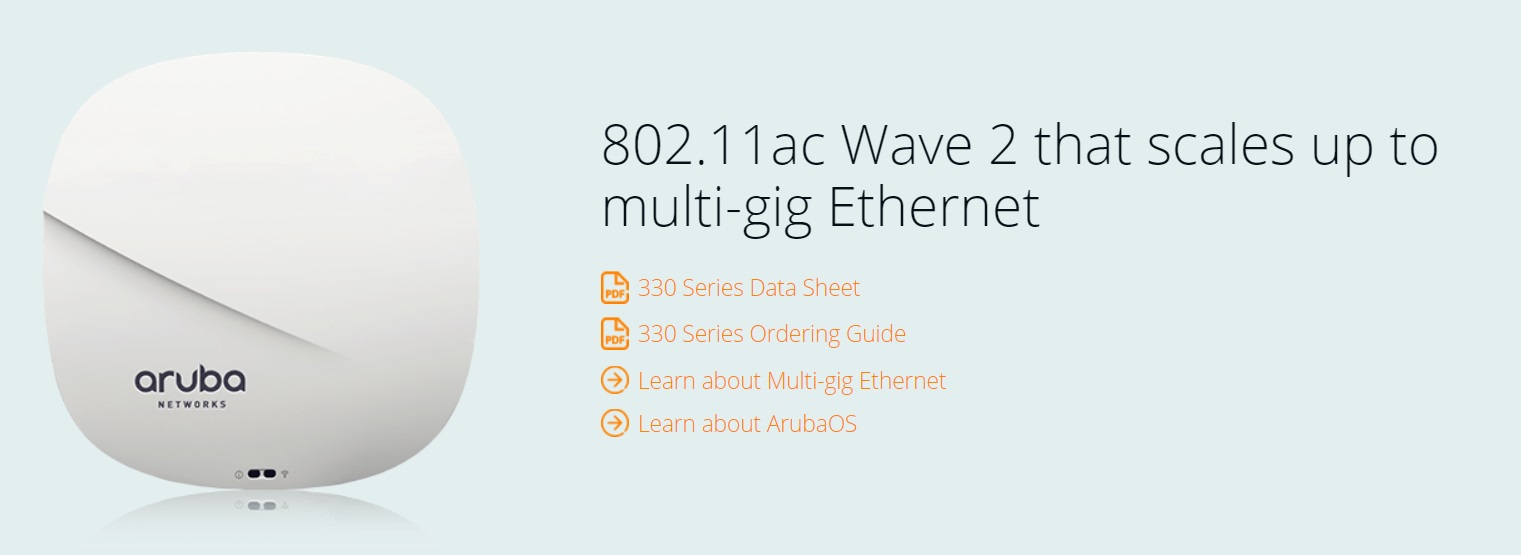

Aruba 330 Series

The Aruba 330 Series access points provide the fastest gigabit data speeds and superb user experience for mobile devices and applications in a digital workplace. Designed with an integrated HPE Smart Rate port to scale up to 5Gbps Ethernet over existing copper, the 330 Series allows enterprises to leverage their multi-gigabit Ethernet wired network infrastructures to eliminate bottlenecks. These Wave 2 access points deliver multi-user MIMO (MU-MIMO) aware ClientMatch to boost network efficiency and support the growing device density demands on your network.

• • UNIQUE BENEFITS

    Dual Radio 802.11ac access point with Multi-User MIMO Supports up to 1,733 Mbps in the 5 GHz band (with 4SS/VHT80 or 2SS/VHT160 clients) and up to 600 Mbps in the 2.4 GHz band (with 4SS/HT40 clients) Antenna polarization diversity for optimized RF performance Each 5 GHz radio chain has a switch and two antennas Software controlled; Horizontally and vertically polarized HPE Smart Rate uplink port that scales up to 5Gbps Supports up to 5Gbps with NBase-T Ethernet compatibility Backwards compatible with 100/1000Base-T Adds support for hitless PoE failover between the HPE Smart Rate port and the secondary 1000Base-T port when both ports are powered Support for additional 5 GHz bands Supports software upgrade to enable additional 5 GHz spectrum when governments expand available frequencies Built-in Bluetooth Low-Energy (BLE) radio Enables location based services with BLE-enabled mobile devices receiving signals from multiple Aruba Beacons at the same time Advanced Cellular Coexistence (ACC) Minimizes interference from 3G/4G cellular networks, distributed antenna systems and commercial small cell/femtocell equipment Quality of service for app visibility and control Supports priority handling and policy enforcement for unified communication apps, including Skype for Business with encrypted videoconferencing, voice, chat and desktop sharing Aruba AppRF technology leverages deep packet inspection to classify and block, prioritize or limit bandwidth for over 1,500 enterprise apps or groups of apps RF Management Adaptive Radio Management (ARM) technology automatically assigns channel and power settings, provides airtime fairness and ensures that APs stay clear of all sources of RF interference to deliver reliable, high-performance WLANs The Aruba 330 Series APs can be configured to provide part-time or dedicated air monitoring for spectrum analysis and wireless intrusion protection, VPN tunnels to extend remote locations to corporate resources, and wireless mesh connections where Ethernet drops are not available Spectrum analysis Capable of part-time or dedicated air monitoring, the spectrum analyzer remotely scans the 2.4 GHz and 5 GHz radio bands to identify sources of RF interference from HT20 through VHT160 operation Security Integrated wireless intrusion protection offers threat protection and mitigation, and eliminates the need for separate RF sensors and security appliances IP reputation and security services identify, classify, and block malicious files, URLs and IPs, providing comprehensive protection against advanced online threats Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys SecureJack-capable for secure tunneling of wiredEthernet traffic Intelligent Power Monitoring (IPM) Enables the AP to continuously monitor and report its actual power consumption and optionally make autonomous decisions to disable certain capabilities based on the amount of power available to the unit Software configurable to disable capabilities in certain orders. For the 330 Series APs, by default, the USB interface will be the first feature to turn off if the AP power consumption exceeds the available power budget

    CHOOSE YOUR OPERATING MODE

    The Aruba 330 Series APs offer a choice of operating modes to meet your unique management and deployment requirements. Controller-managed mode – When managed by Aruba Mobility Controllers, Aruba 330 Series APs offer centralized configuration, data encryption, policy enforcement and network services, as well as distributed and centralized traffic forwarding. Aruba Instant mode – In Aruba Instant mode, a single AP automatically distributes the network configuration to other Instant APs in the WLAN. Simply power-up one Instant AP, configure it over the air, and plug in the other APs – the entire process takes about five minutes. If WLAN requirements change, a built-in migration path allows the 330 Series Instant APs to become part of a WLAN that is managed by a Mobility Controller. Remote AP (RAP) for branch deployments Air monitor (AM) for wireless IDS, rogue detection and containment Spectrum analyzer, dedicated or hybrid, for identifying sources of RF interference Secure enterprise mesh For large installations across multiple sites, the Aruba Activate service significantly reduces deployment time by automating device provisioning, firmware upgrades, and inventory management. With Aruba Activate, the Instant APs are factory-shipped to any site and configure themselves when powered up.

    SPECIFICATIONS

    AP-334 (controller-managed) and IAP-334 (Instant): 802.11ac – 5 GHz 4x4 MIMO (1,733 Mbps max rate) and 2.4 GHz 4x4 MIMO (600 Mbps max rate) radios, with a total of four dual-band RP-SMA connectors for external antennas AP-335 (controller-managed) and IAP-335 (Instant): 802.11ac – 5 GHz 4x4 MIMO (1,733 Mbps max rate) and 2.4 GHz 4x4 MIMO (600 Mbps max rate) radios, with a total of twelve integrated omni-directional downtilt antennas

    WI-FI RADIO SPECIFICATIONS

    AP type: Indoor, dual radio, 5 GHz 802.11ac 4x4 MIMO and 2.4 GHz 802.11n 4x4 MIMO In addition to 802.11n, the 2.4 GHz radio supports all 802.11ac features as well (proprietary extension) Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1) 5 GHz: Four spatial stream Single User (SU) MIMO for up to 1,733 Mbps wireless data rate to individual 4x4 VHT80 or 2x2 VHT160 client devices Four spatial stream Multi User (MU) MIMO for up to 1,733 Mbps wireless data rate to up to three MU-MIMO capable client devices simultaneously 2.4 GHz: Four spatial stream Single User (SU) MIMO for up to 600 Mbps wireless data rate to individual 4x4 HT40 client devices Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per radio Supported frequency bands (country-specific restrictions apply): 2.400 to 2.4835 GHz 5.150 to 5.250 GHz 5.250 to 5.350 GHz 5.470 to 5.725 GHz 5.725 to 5.850 GHz Available channels: Dependent on configured regulatory domain Dynamic frequency selection (DFS) optimizes the use of available RF spectrum Supported radio technologies: 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) Supported modulation types: 802.11b: BPSK, QPSK, CCK 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM Transmit power: Configurable in increments of 0.5 dBm Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements): 2.4 GHz band: +24 dBm (18 dBm per chain) 5 GHz band: +24 dBm (18 dBm per chain) Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain Maximum ratio combining (MRC) for improved receiver performance Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance Short guard interval for 20 MHz, 40 MHz, 80 MHz and 160 MHz channels Space-time block coding (STBC) for increased range and improved reception Low-density parity check (LDPC) for high-efficiency error correction and increased throughput Transmit beam-forming (TxBF) for increased signal reliability and range Supported data rates (Mbps): 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 600 (MCS0 to MCS31) 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80, NSS = 1 to 2 for VHT160) 802.11n high-throughput (HT) support: HT 20/40 802.11ac very high throughput (VHT) support: VHT 20/40/80/160 802.11n/ac packet aggregation: A-MPDU, A-MSDU

  • WI-FI ANTENNAS

    AP-334/IAP-334: Four RP-SMA connectors for external dual band antennas. Internal loss between radio interface and external antenna connectors (due to diplexing circuitry): 2.3 dB in 2.4 GHz and 1.2 dB in 5 GHz. AP-335/IAP-335 Four integrated 2.4 GHz downtilt omni-directional antennas for 4x4 MIMO with maximum antenna gain of 4.3 dBi per antenna. Each 5 GHz radio chain has both a vertically and a horizontally polarized antenna element; AP software automatically and dynamically selects the best set of elements for each data packet transmitted or received. Four integrated vertically polarized 5 GHz downtilt omni-directional antennas for 4x4 MIMO with maximum antenna gain of 5.4 dBi per antenna. Four integrated horizontally polarized 5 GHz downtilt omni-directional antennas for 4x4 MIMO with maximum antenna gain of 4.2 dBi per antenna. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees. The maximum gain of the combined (summed) antenna patterns for all elements operating in the same band is 8.6 dBi in 2.4 GHz and 8.5 dBi (vertical)/8.1 dBi (horizontal) in 5 GHz.

    OTHER INTERFACES

    One HPE Smart Rate port (RJ-45, maximum negotiated speed 5 Gbps) Auto-sensing link speed (100/1000/2500/5000BASE-T) and MDI/MDX 802.3az Energy Efficient Ethernet (EEE) - PoE-PD: 48 Vdc (nominal) 802.3at PoE One 10/100/1000BASE-T Ethernet network interface (RJ-45) Auto-sensing link speed and MDI/MDX 802.3az Energy Efficient Ethernet (EEE) PoE-PD: 48 Vdc (nominal) 802.3at PoE DC power interface, accepts 1.35/3.5-mm center-positive circular plug with 9.5-mm length USB 2.0 host interface (Type A connector) Bluetooth Low Energy (BLE) radio Up to 4 dBm transmit power (class 2) and -91 dBm receive sensitivity Integrated antenna with roughly 30 degrees downtilt and peak gain of 5.1 dBi (AP-334/IAP-334) or 2.2 dBi (AP-335/IAP-335) Visual indicators (tri-color LEDs): For system and radio status Reset button: Factory reset (during device power up) Serial console interface (RJ-45, RS232) Kensington security slot

    POWER SOURCES AND CONSUMPTION

    The AP supports direct DC power and Power over Ethernet (PoE) When both power sources are available, DC power takes priority over PoE Power sources are sold separately Direct DC source: 48Vdc nominal, +/- 5% Interface accepts 1.35/3.5-mm center-positive circular plug with 9.5-mm length Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af/802.3at compliant source When using IPM, the AP may enter power-save mode with reduced functionality when powered by a PoE source (see details on Intelligent Power Monitoring in this datasheet) Without IPM the AP will apply some fixed restrictions when using PoE: The USB interface is disabled when using an 802.3at PoE power source The USB interface and second Ethernet port are disabled, and both radios operate in 1x1 mode when using an 802.3af POE power source Maximum (worst-case) power consumption: 25.3W (802.3at PoE), 13.2W (802.3af PoE) or 25W (DC) Excludes power consumed by external USB device (and internal overhead); this could add up to 5.9W (PoE or DC) for a 5W/1A USB device Maximum (worst-case) power consumption in idle mode: 10.9W (PoE or DC)

    MOUNTING
    The AP ships with two (white) mounting clips to attach to a 9/16-inch or 15/16-inch flat T-bar drop-tile ceiling. Several optional mount kits are available to attach the AP to a variety of surfaces; see the Ordering Information section below for details

    MECHANICAL
    Dimensions/weight (unit, excluding mount accessories): 225 mm (W) x 224 mm (D) x 52 mm (H), 8.9” (W) x 8.9” (D) x 2.0” (H) 1150g/41oz Dimensions/weight (shipping): 335 mm (W) x 290 mm (D) x 85 mm (H), 13.2” (W) x 11.4” (D) x 3.35” (H) 1750g/62oz

    ENVIRONMENTAL
    Operating: Temperature: 0° C to +50° C (+32° F to +122° F) Humidity: 5% to 93% non-condensing Storage and transportation: Temperature: -40° C to +70° C (-40° F to +158° F)

    REGULATORY
    FCC/Industry of Canada CE Marked R&TTE Directive 1995/5/EC Low Voltage Directive 72/23/EEC EN 300 328 EN 301 489 EN 301 893 UL/IEC/EN 60950 EN 60601-1-1 and EN 60601-1-2 For more country-specific regulatory information and approvals, please see your Aruba representative.

    RELIABILITY
    MTBF: 531,662hrs (61yrs) at +25C operating temperature

    REGULATORY MODEL NUMBERS
    AP-334 and IAP-334: APIN0334 AP-335 and IAP-335: APIN0335

    CERTIFICATIONS
    CB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac

    WARRANTY
    Aruba limited lifetime warranty

    MINIMUM SOFTWARE VERSIONS
    ArubaOS 6.5.0.0 Aruba InstantOS 4.3.0.0
